Introducing a New composite manufacturing solution:

Vitriply by Mallinda

Fast cycle time means Higher throughput, lower cost, sustainable, and scalable
  • Vitriply is a fully cured composite laminate
  • Manufacturing steps related to curing are no longer necessary
  • Rapid cycle time makes onshoring domestic stateside composite manufacturing feasible
High strength interfacial adhesion

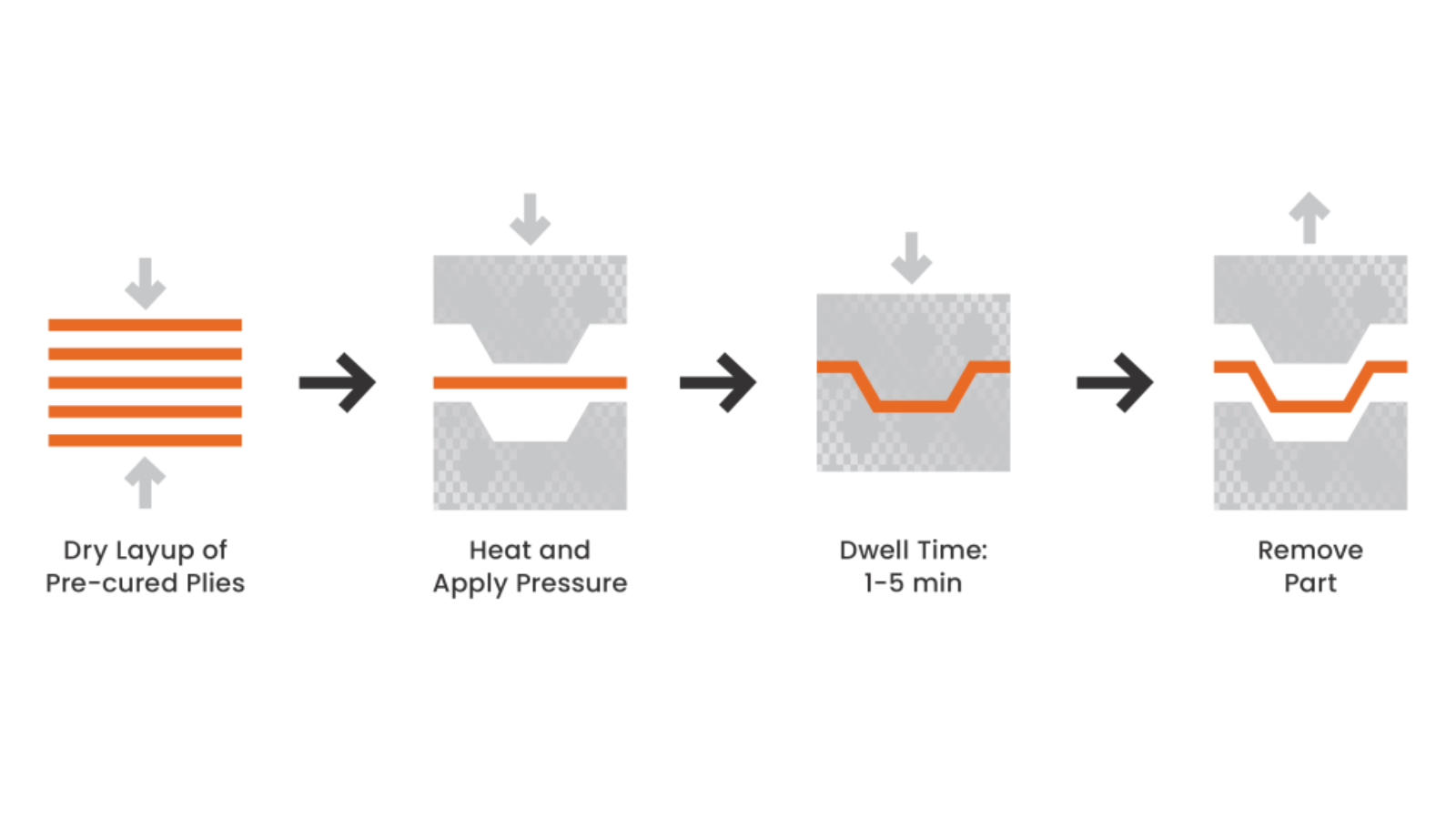

  • Heat and pressure-activated bond exchange laminates plies together to form a strong shear-resistant lamination between plies
Fully recyclable, fully sustainable
  • vitriply is made with fully recyclable chemistry for a nearly net-zero carbon footprint
  • satisfies environmental requirements for today and years into the future

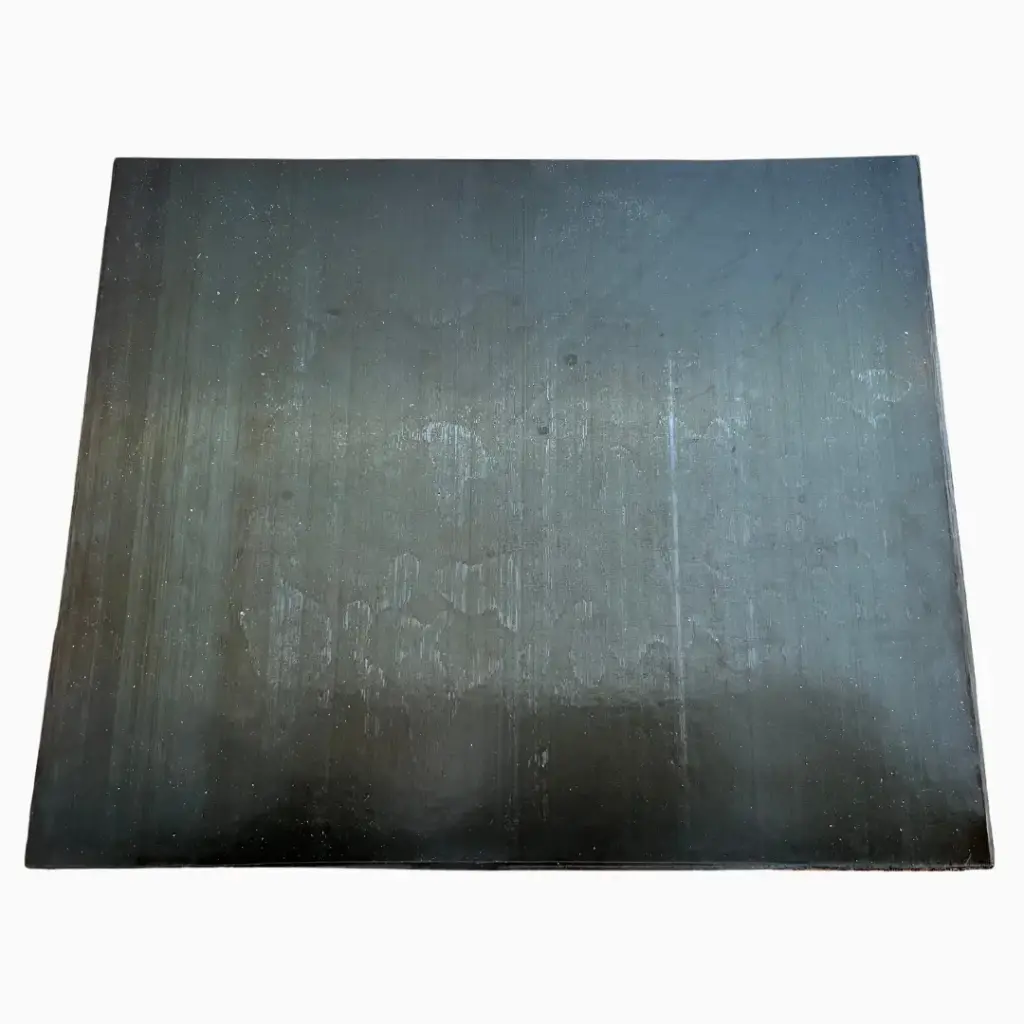

Fully-Cured Multi-Ply Unidirectional Carbon Fiber Panels

https://mallindainc.odoo.com/web/image/product.template/11/image_1920?unique=6c8b6ef
  • 300mm x 230mm x 10 ply
  • Made using Unidirectional B-Stage Prepreg Carbon Fiber layered in a 0°/90° configuration
  • 130 gsm HTS40 CF uni, 42% resin WW
  • Fully Cured | Tg >100°C | Void content <2%


2,080.00 2080.0 USD 2,080.00

Not Available For Sale

(2,080.00 / panel)

This combination does not exist.

Finished Product

By completing your purchase,
you acknowledge and accept the
Terms and Conditions, and Non-Analysis Agreement.

Shipping will be calculated during checkout
